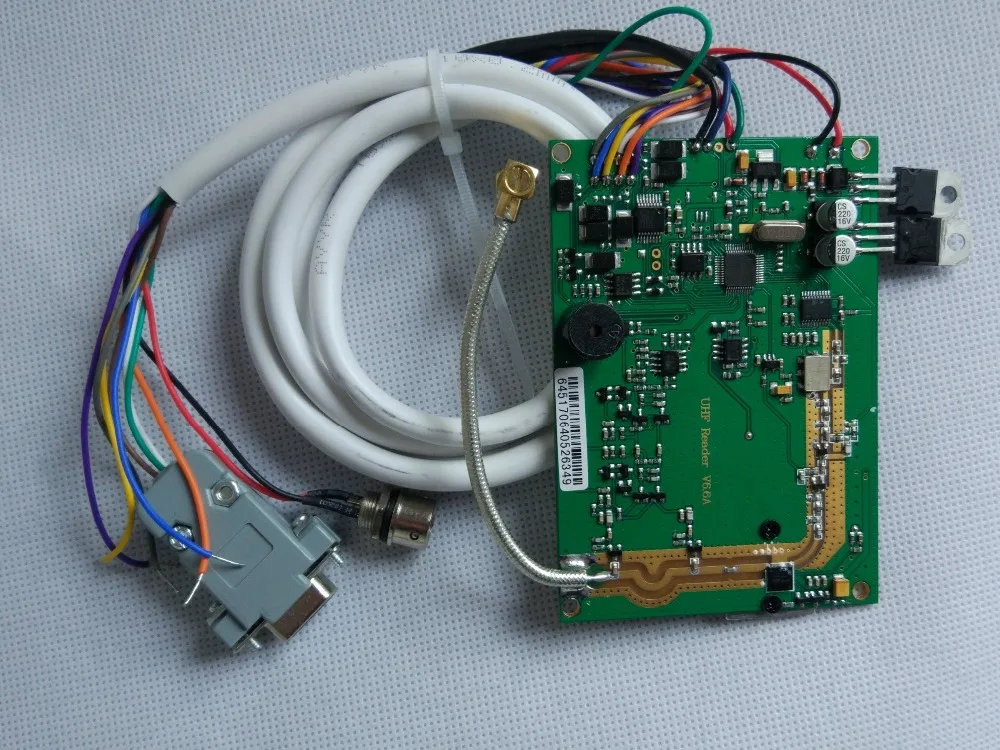

UHF reader module RFID 915M
Model Number: UHF reader module
Frequency of operation: 902-928 MHz (adjustable to different country or region requirements) support protocol: support for electronic tags conforming to ISO18000-6B, EPC CLASS S1G2 standards
Support interface: support RS232, RS485, weigen and other user interfaces.
Working mode: broad spectrum frequency hopping (FHSS) or fixed frequency transmitting mode.
Support automatic mode, interactive response mode, trigger mode and many other working modes.
Output power: 30dBm (adjustable)
Provide dynamic link library (DLL) and demo software source code, support for the two development.
Low power design, single plus 9 V power supply
Effective distance is related to protocol format, external antenna, electronic tag and working environment.
Module size: 100mm * 70mm
